LCM ATC-P

Coating Machine

Coating machines with intermediate pump in belt widths of 32, 42 and 60 cm are the optimal solution for coating high and large products such as cakes or pastry slices and bars of all kinds . The different variants can be found under the technical data.

Product description

  • Coating machine with fully automatic tempering and intermediate pump for larger processing quantities.
  • The machine itself as well as the coating belt can be easily removed and cleaned
  • A chocolate change is very easy possible

Features

  • PLC control, with 10" glass screen for comfortable operation and menu navigation.
  • Standby function - temperature increase in the tank and interval control for the agitator to ensure a perfect decrystallization during the work pause
  • Different chocolate temperatures and settings (recipes, products) are freely programmable
  • Ready-to-plug-in preparation for retrofitting of vibrating tables and dosing system
  • Intermediate pump electronically adjustable - conveying capacity up to 2000 kg/hr.
  • Intermediate tank for pump heated, temperature adjustable
  • Interior heating - temperature adjustable, with fan for even distribution of heat
  • Smooth start-up of the agitator due to the use of a frequency converter - Thus lower load on the mechanical components and long service life
  • Level measurement 'minimum - maximum' via indicator light - ready to plug in prepared for automatic charging via external dissolver with pump
  • Pouring tube height adjustable, swiveling and removable for cleaning
  • Covering grid belt; easily removable and therefore very easy to clean, dishwasher safe Total length 1.4 meters
  • Infeed grating belt separate from the overlay belt, feeding area 40 cm, very narrow transfer even for smallest products
  • Floor draining device included
  • Veil box continuously adjustable in height up to 10 cm
  • Continuously adjustable blower with filter for blowing off the chocolate after coating
  • Blower shaft removable and adjustable in height up to 10 cm
  • Paper discharge belt with paper roll for hanging, total length 1.6 meters - ( except LCM 600 ATC-P )
  • Start-stop system for one-man operation, and for extremely effective use of the paper
  • Plastic hood 1-piece with hinge for opening by means of gas pressure damper
  • residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
  • Machine housing completely made of stainless steel, mobile on swivel castors

Technical data

Capacity (kg)Width (cm)*Depth (cm)Height (cm)**el. Connection (V/kW)Weight (kg)

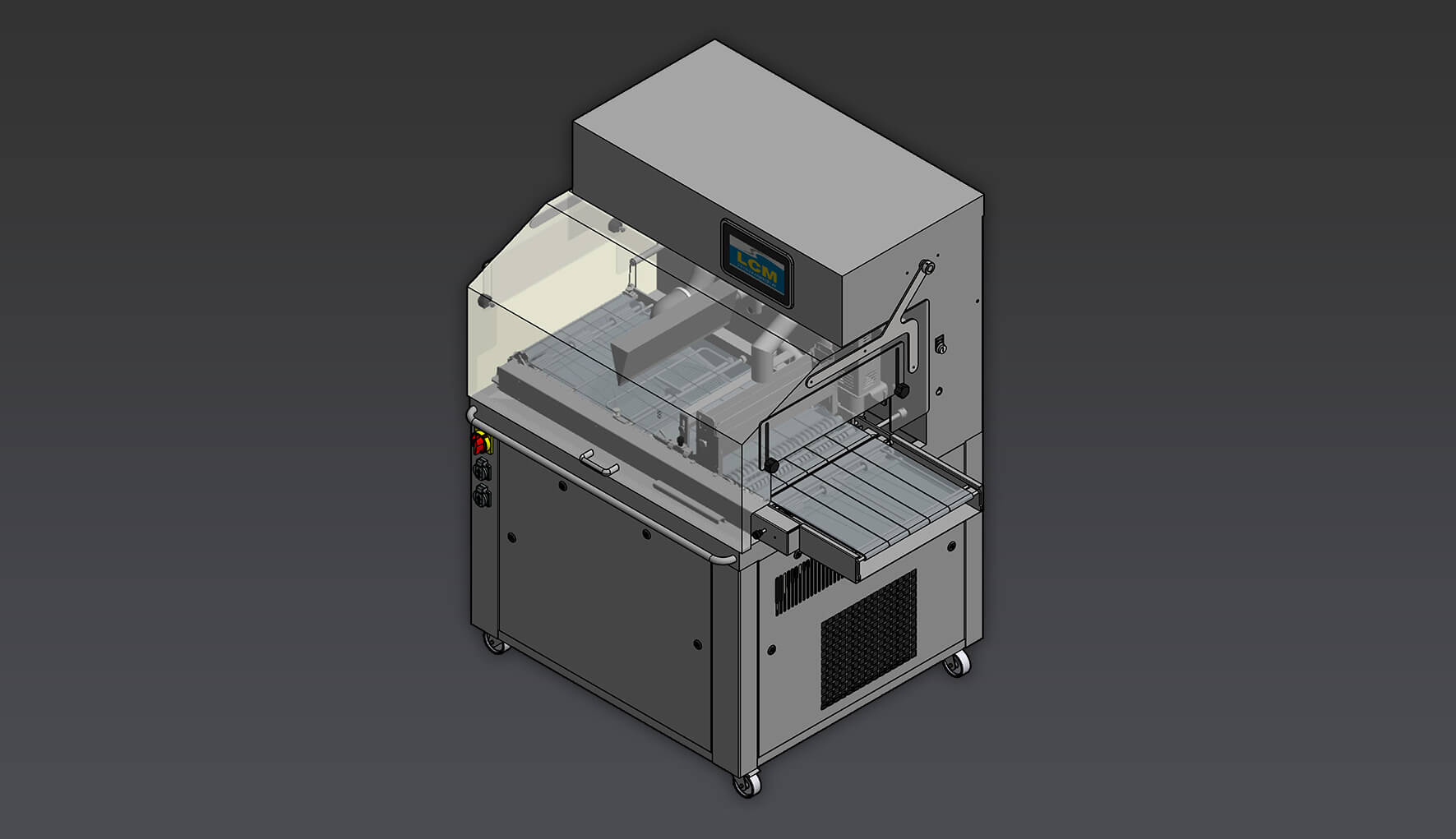

LCM 320 ATC-P50106/145/30610489/97/161400/4,2400

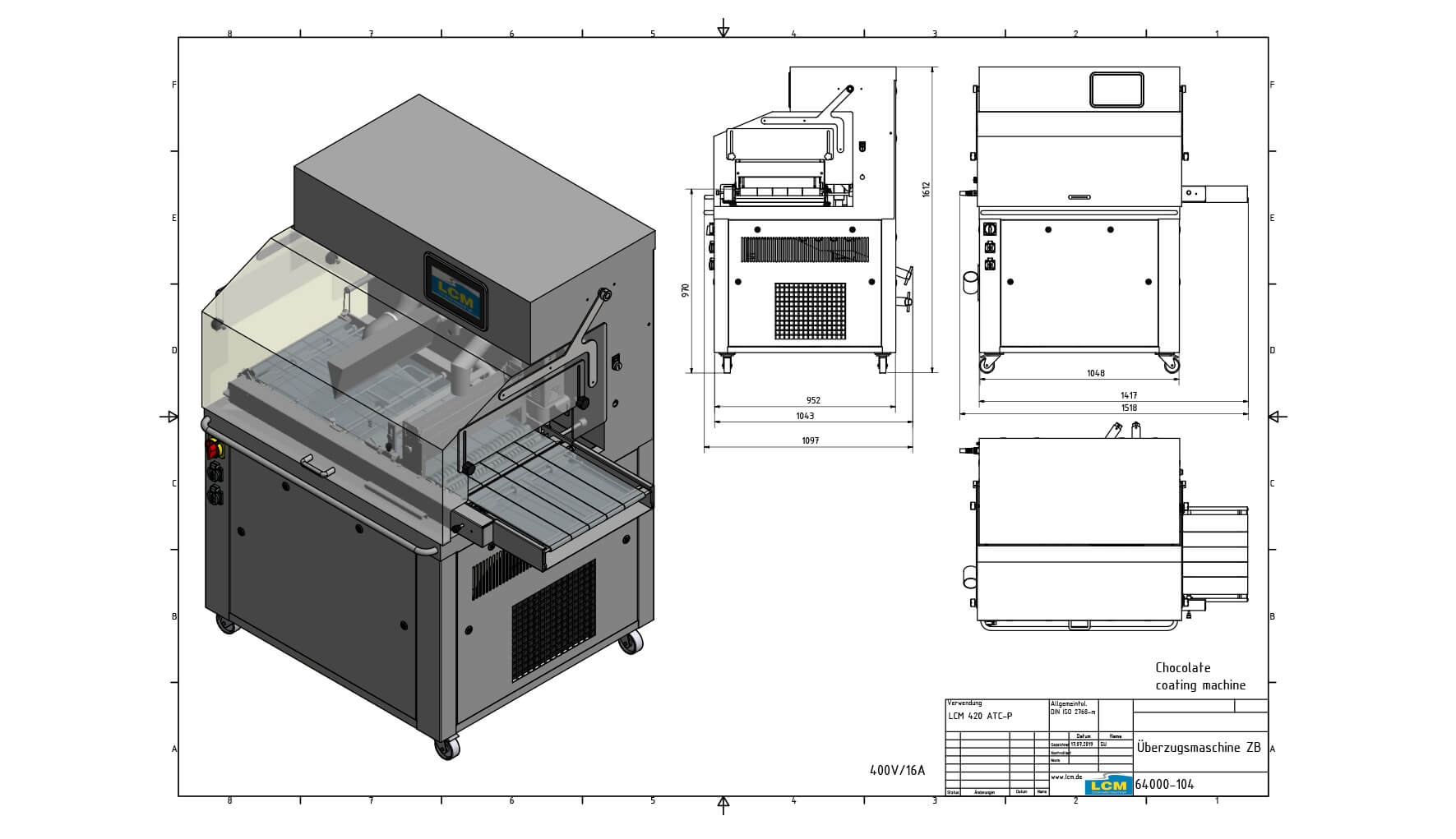

LCM 420 ATC-P50106/145/30610489/97/161400/4,2420

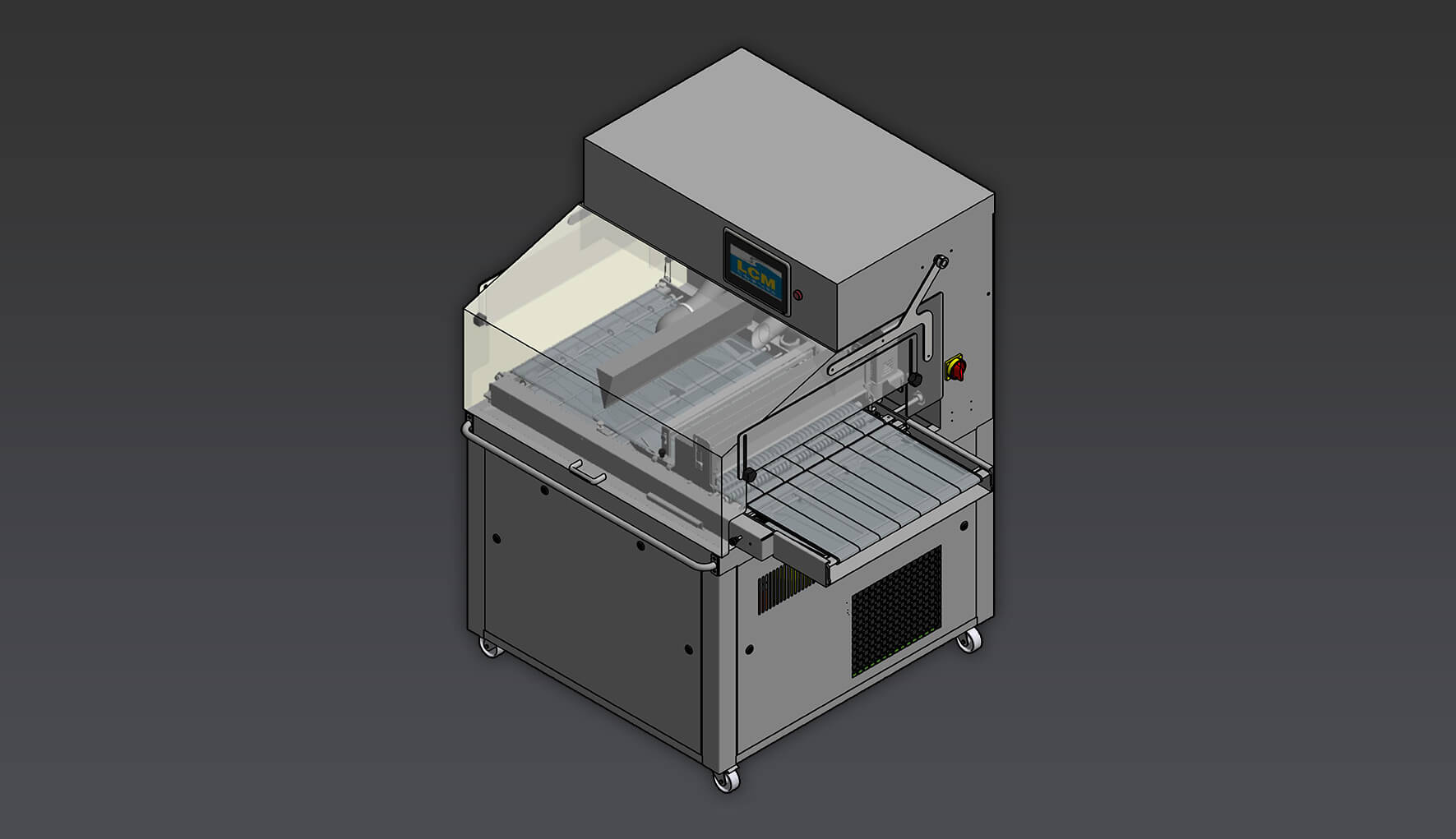

LCM 600 ATC-P65106/14513091/99/164400/4.5480

* Width machine / width enrobing grid belt / width with paper transport belt

** Height heated vat / working height / height machine
