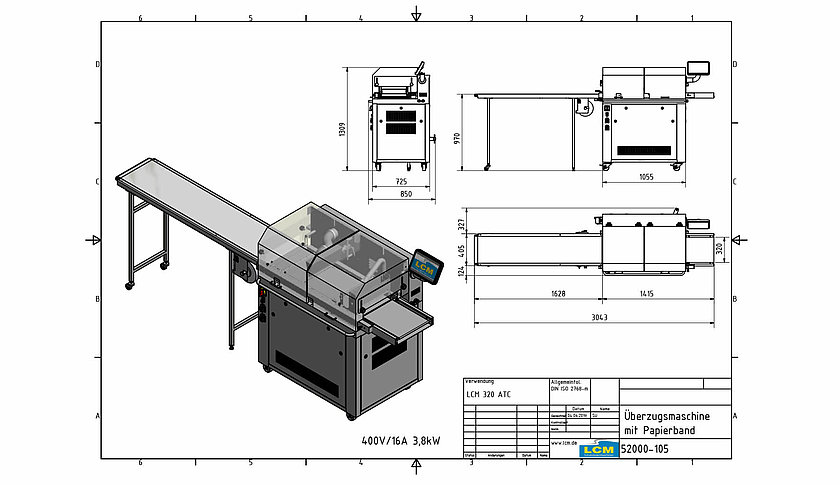

Coating machine

Coating machines with belt widths of 24, 32 and 42 cm are the optimal solution for coating all kinds of products. Whether pralines, cakes, bottom coating - due to the long dripping distance, the machines of this design are suitable for coating the vast majority of products. You will find the different variants under the technical data.

Product description

Coating and casting machine with fully automatic tempering.
The machine itself as well as the coating belt can be easily removed and cleaned
Also for pouring these machines offer enough space for comfortable working
A chocolate change is very easy possible

Features

PLC control, with 10" glass screen for comfortable operation and menu navigation.
Standby function - temperature increase in the tank and interval control for the agitator to ensure a perfect de-crystallization during the work pause
Standby function - temperature increase in the tank and interval control for the agitator to ensure perfect de-crystallization during the work pause
Different temperatures and settings (recipes, products) are freely programmable
Ready-to-plug-in preparation for retrofitting of vibrating tables and dosing system
Interior heating - temperature adjustable, with fan for even distribution of heat
Smooth start-up of the agitator by using a frequency converter. Thus lower load on the mechanical components and long service life
Level measurement 'minimum - maximum' via indicator light - ready to plug in, prepared for automatic charging via external dissolver with pump
Integrated, heated working trough approx. 90 cm wide and 45 cm deep
Pouring tube height adjustable, swiveling and removable for cleaning
Cover grating belt; easily removable and therefore very easy to clean, dishwasher safe Total length 1.4 meters
Infeed grating belt separate from the overlay belt, infeed area 40 cm, very tight transfer even for smallest products
Floor draining device included
Veil box continuously adjustable in height up to 10 cm
Continuously adjustable blower with filter for blowing off the chocolate after coating
Blower shaft removable and adjustable in height up to 10 cm

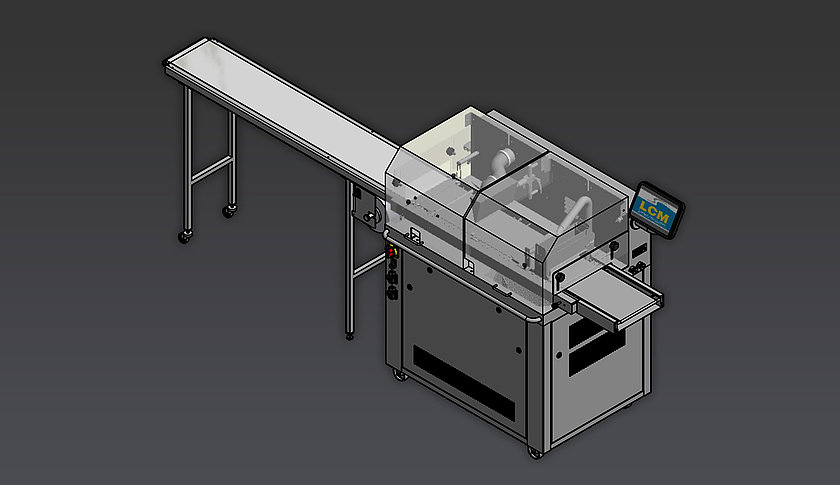

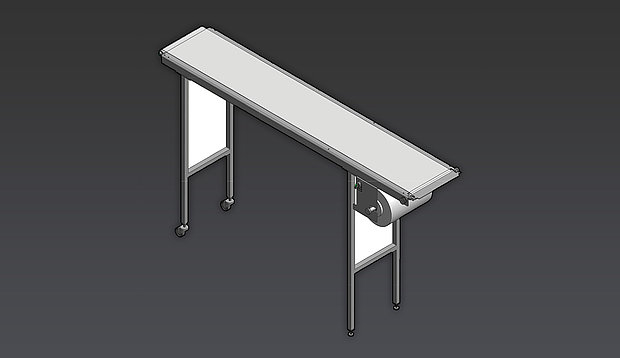

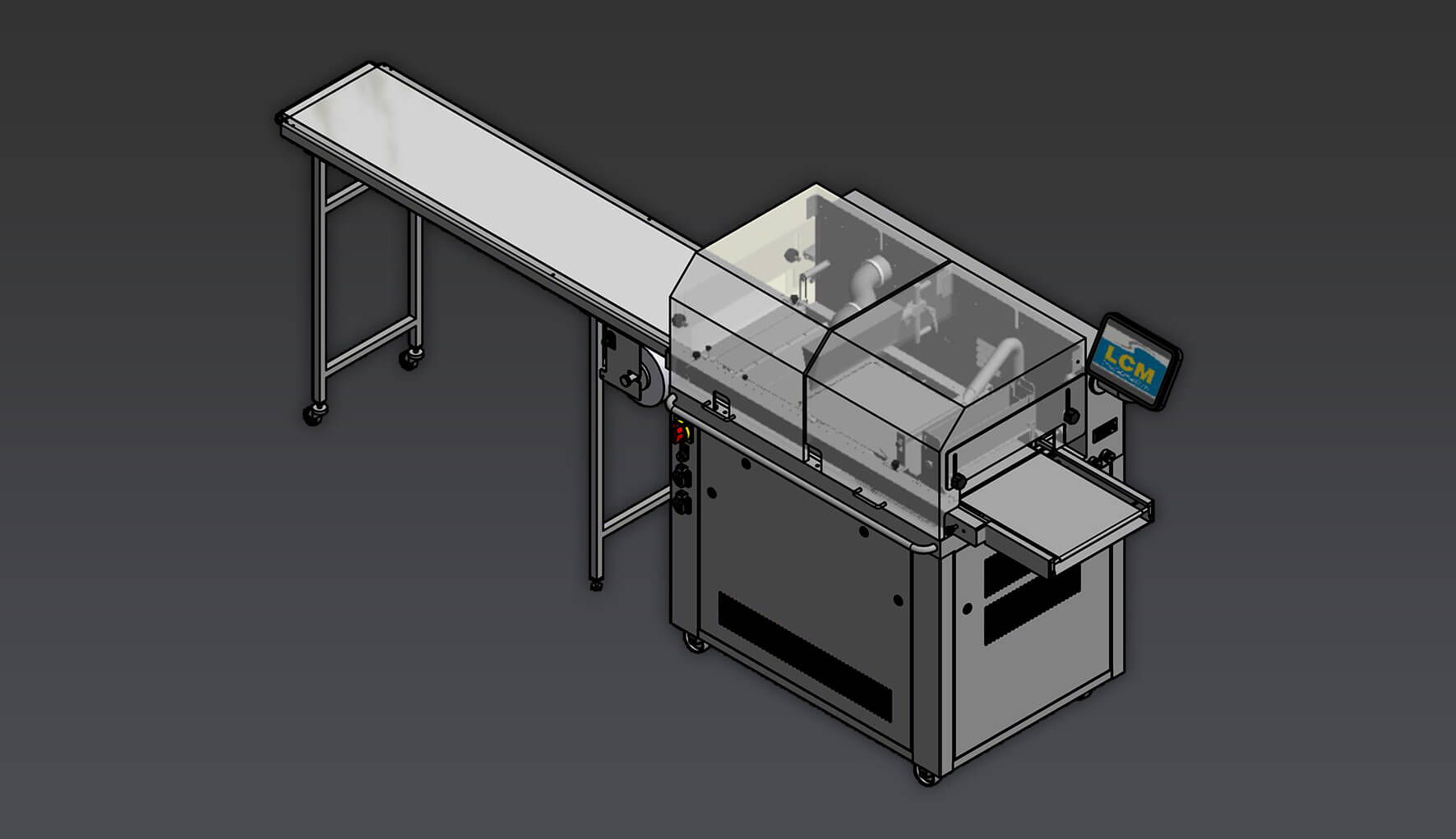

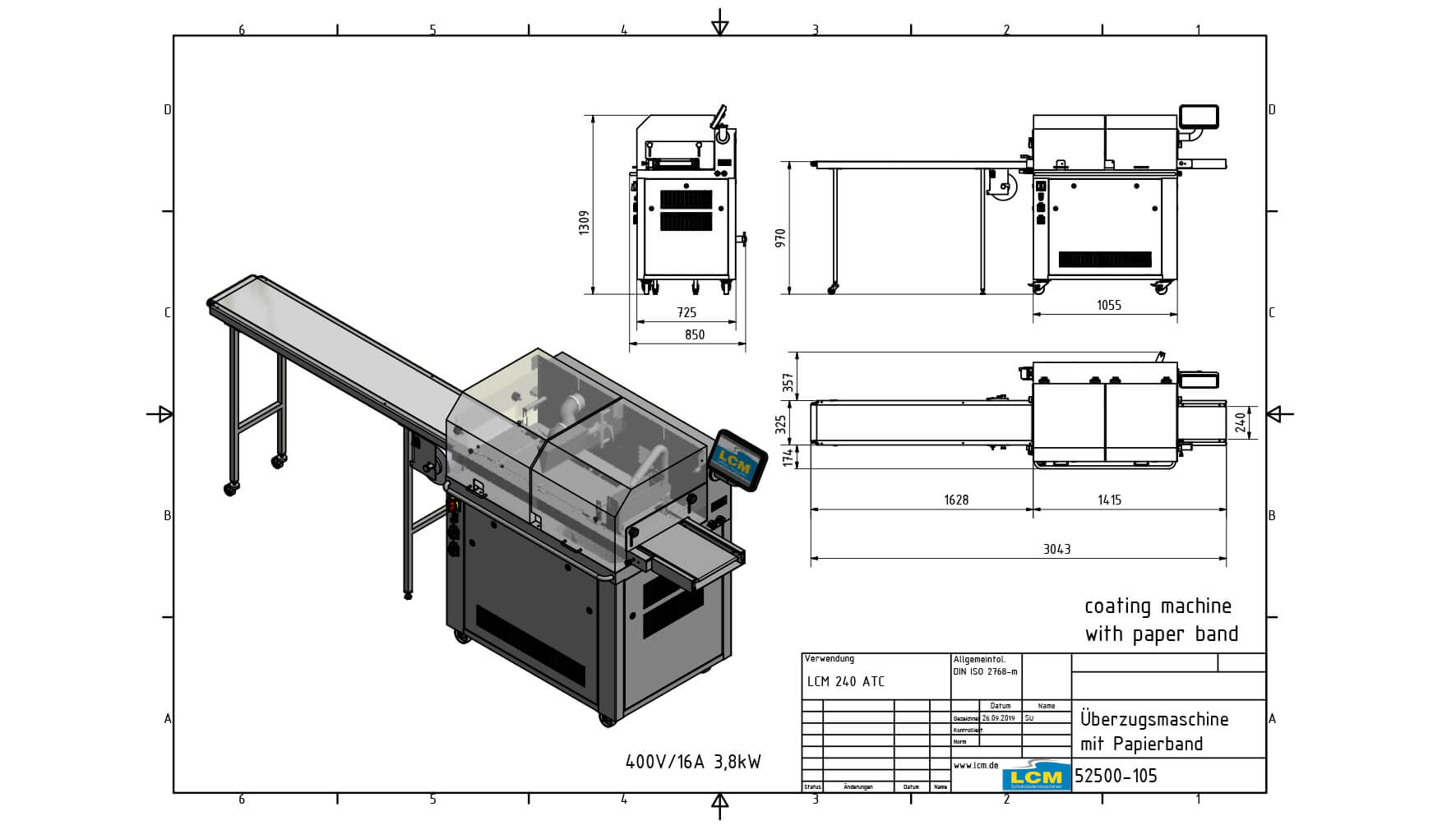

Paper discharge belt with paper roll for hanging, total length 1.6 meters
Start-stop system for one-man operation, and for extremely effective use of the paper
2-piece plastic hoods with hinge for opening
Residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
Machine housing completely made of stainless steel, mobile on swivel castors
