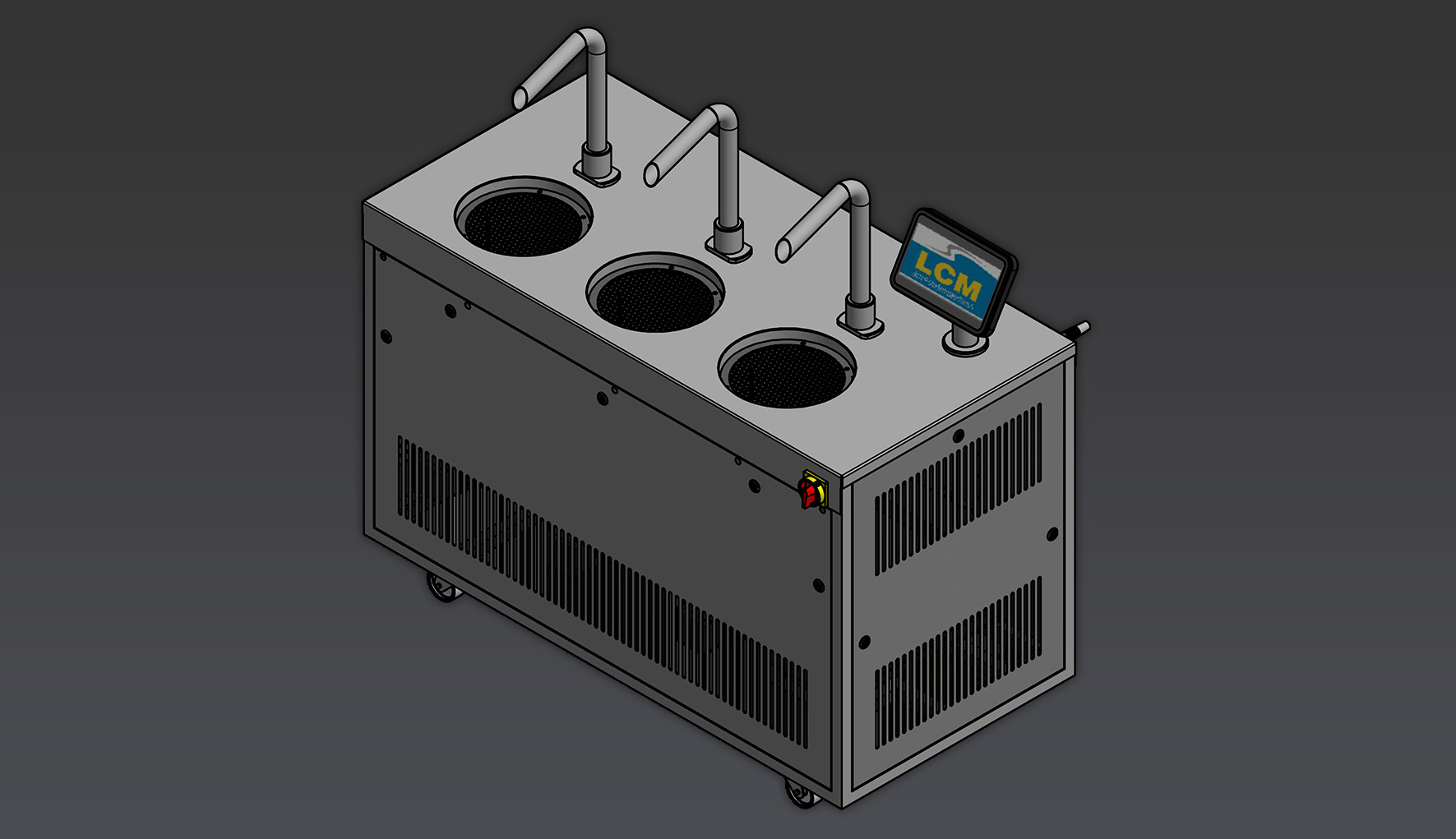

LCM AT TRIPLE

Tempering machine

The LCM AT TRIPLE TEMPER was developed to have three different types of tempered chocolate available at the same time. The tanks, each with a capacity of 25 kg, operate completely independently of each other, and the processing parameters of each tank can be set via the common display.



Product description

  • Flexible temperature control machine with a tank volume of max. 25 kg each
  • Comfortable operation via the 10" touch panel
  • Easy chocolate change and cleaning

Features

  • Three independently operating machines combined in one housing
  • PLC control, with 10" glass screen for comfortable operation and simple menu navigation
  • Different chocolate temperatures and settings (recipes) are programmable
  • Various accessories ready to be plugged in and operated via the touch panel, e.g. dosage
  • Standby function - temperature increase in the tank and interval for the stirrer to ensure perfect decrystallization during the work pause
  • Automatic, individual shutdown of the heating circuits depending on the filling quantity
  • Solid chocolate is dissolved over a period of about 8 hours
  • Liquid chocolate can be continuously refilled in small uniform quantities
  • Level measurement "minimum" via indicator light
  • Pouring tubes height-adjustable, swiveling and can also be removed for cleaning
  • FI residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
  • Cooling system for temperature control in the lower part of the machine
  • Machine housing completely made of stainless steel, mobile on swivel castors

Technical data

Capacity (kg)Width (cm)Depth (cm)Height (cm)**el. Connection (V/kW)Weight (kg)
LCM 25 AT TRIPLE2 x 251437896/103/125400/6.0250

** Height heated vat / working height / height machine



Do you have any further questions? We will be glad to help you!
