LCM AT

Tempering machine

The LCM AT models are suitable for casting hollow bodies and molds, for manual coating of all types of cakes and pastries, and for feeding coating and dosing machines of all makes. Due to the pouring tube which can be moved in all directions, the machines can be used flexibly. The different variants can be found under technical data.

Product description

  • Flexible temperature control machine with a tank capacity of max. 25 or 50 kg
  • Convenient operation via 10" touch panel (LCM 50 AT only)
  • Easy chocolate change and cleaning

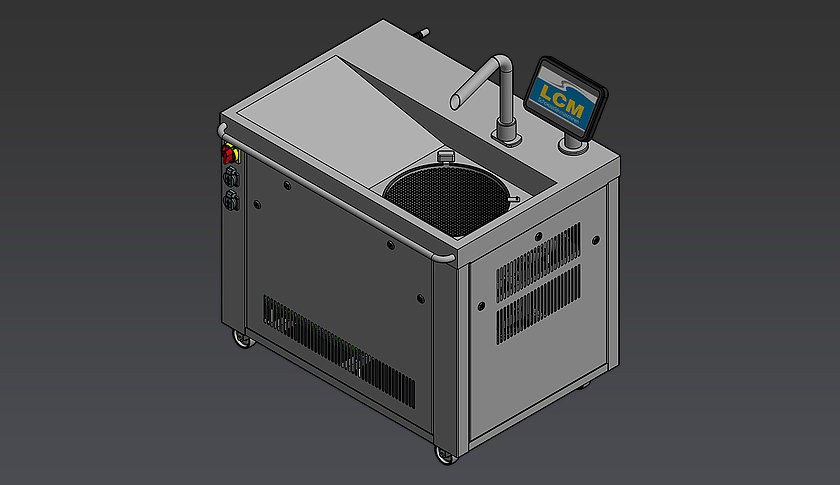

Features LCM 50 AT

  • PLC control, with 10" glass screen for comfortable operation and easy menu navigation
  • Different chocolate temperatures and settings (recipes) are programmable
  • Various accessories prepared ready to plug in and operable via the touch panel, such as dosing, vibrating table and heated protective grid. A heated pipe system can be retrofitted
  • Standby function - temperature increase in the tank and interval for the agitator to ensure perfect decrystallization during the work pause
  • Smooth start-up of the agitator by using a frequency converter, thus low stress on the mechanical components and a long service life
  • Automatic, individual shutdown of the heating circuits depending on the filling quantity
  • Solid chocolate is dissolved over a period of about 8 hours
  • Liquid chocolate can be continuously refilled in small uniform quantities
  • Level measurement "minimum - maximum" via indicator light, ready to plug in prepared for automatic charging by external dissolver with pump ( not with LCM 25 AT)
  • Pouring tube height adjustable, swiveling and also removable for cleaning
  • FI residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
  • Cooling system for temperature control in the lower part of the machine
  • Machine housing completely made of stainless steel, mobile on swivel castors

Technical data

 Capacity (kg)Width (cm)Depth (cm)Height (cm)**el. Connection (V/kW)Weight (kg)

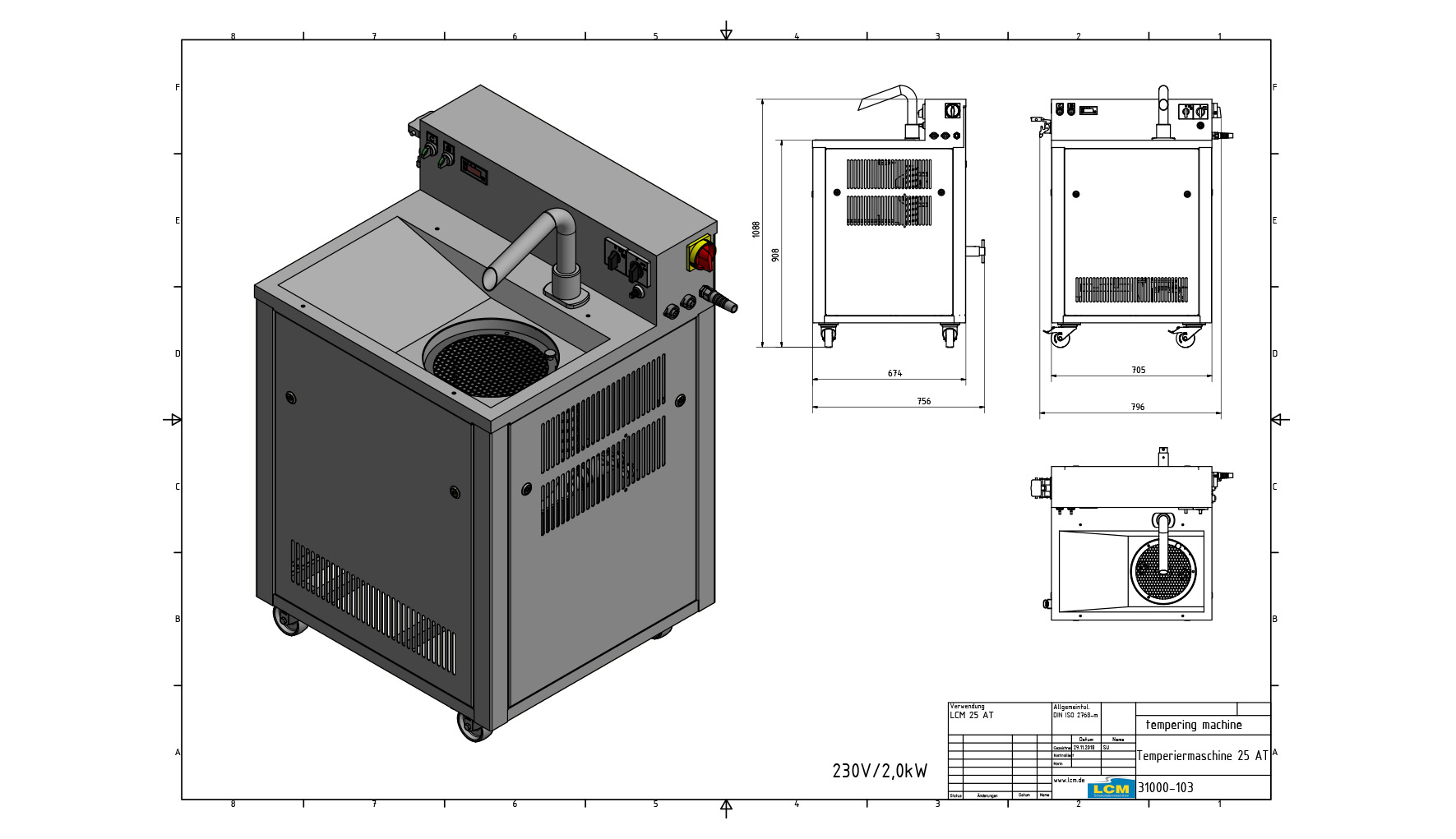

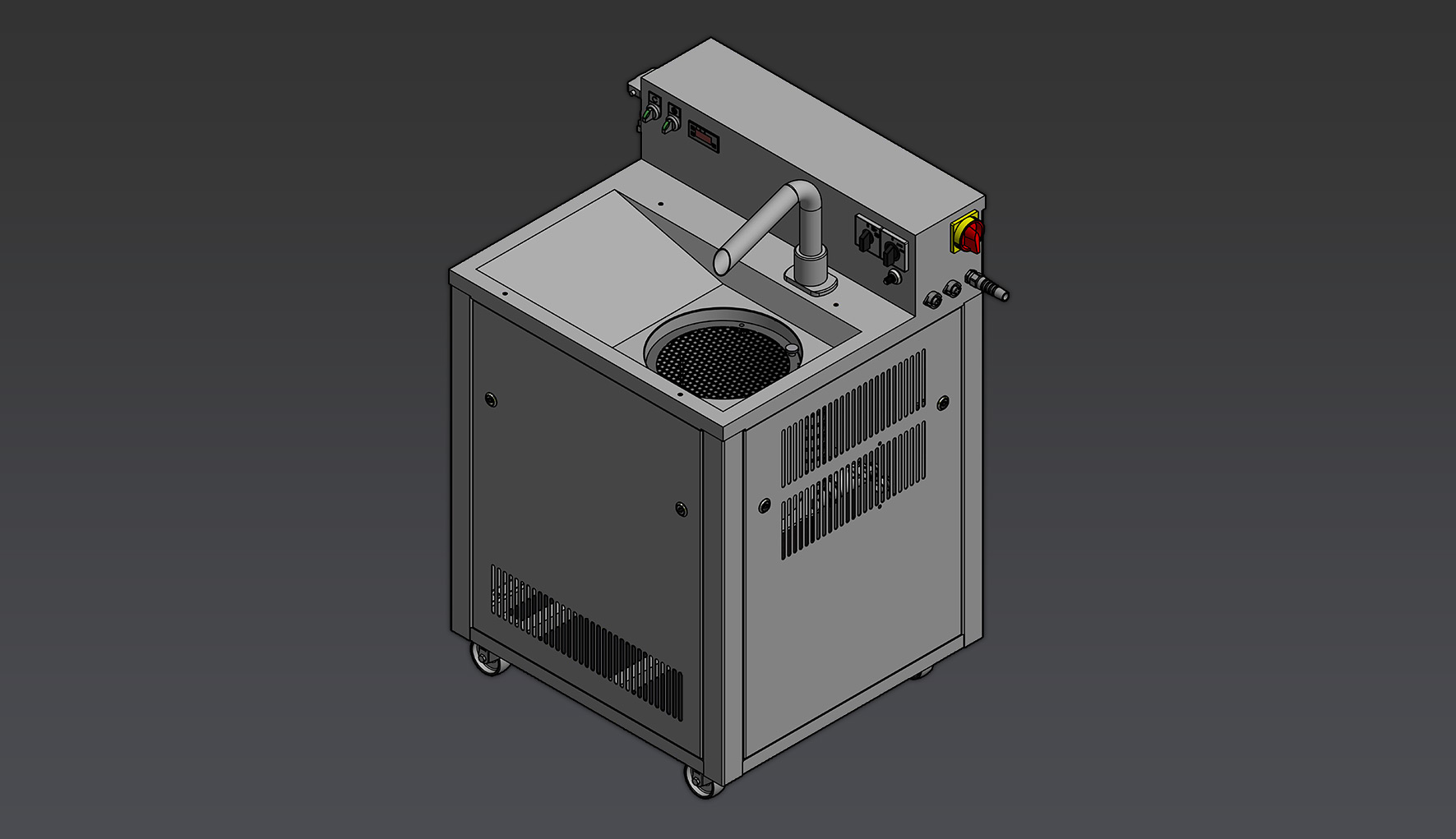

LCM 25 AT25807691/109230/2,0110

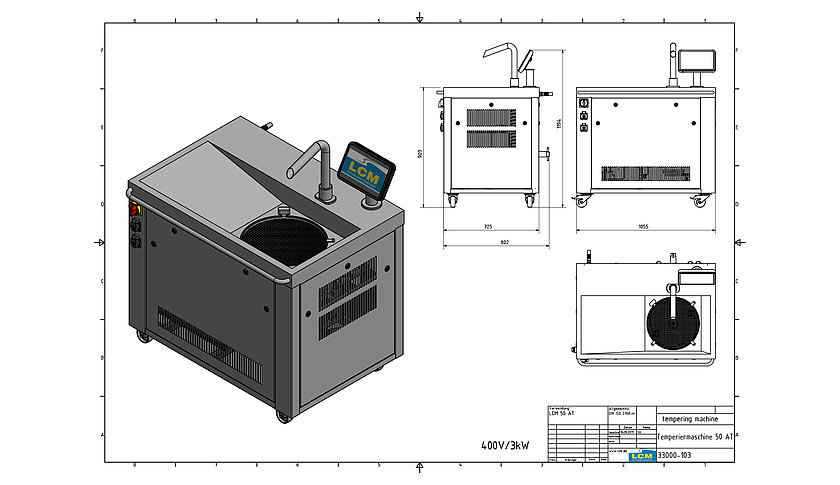

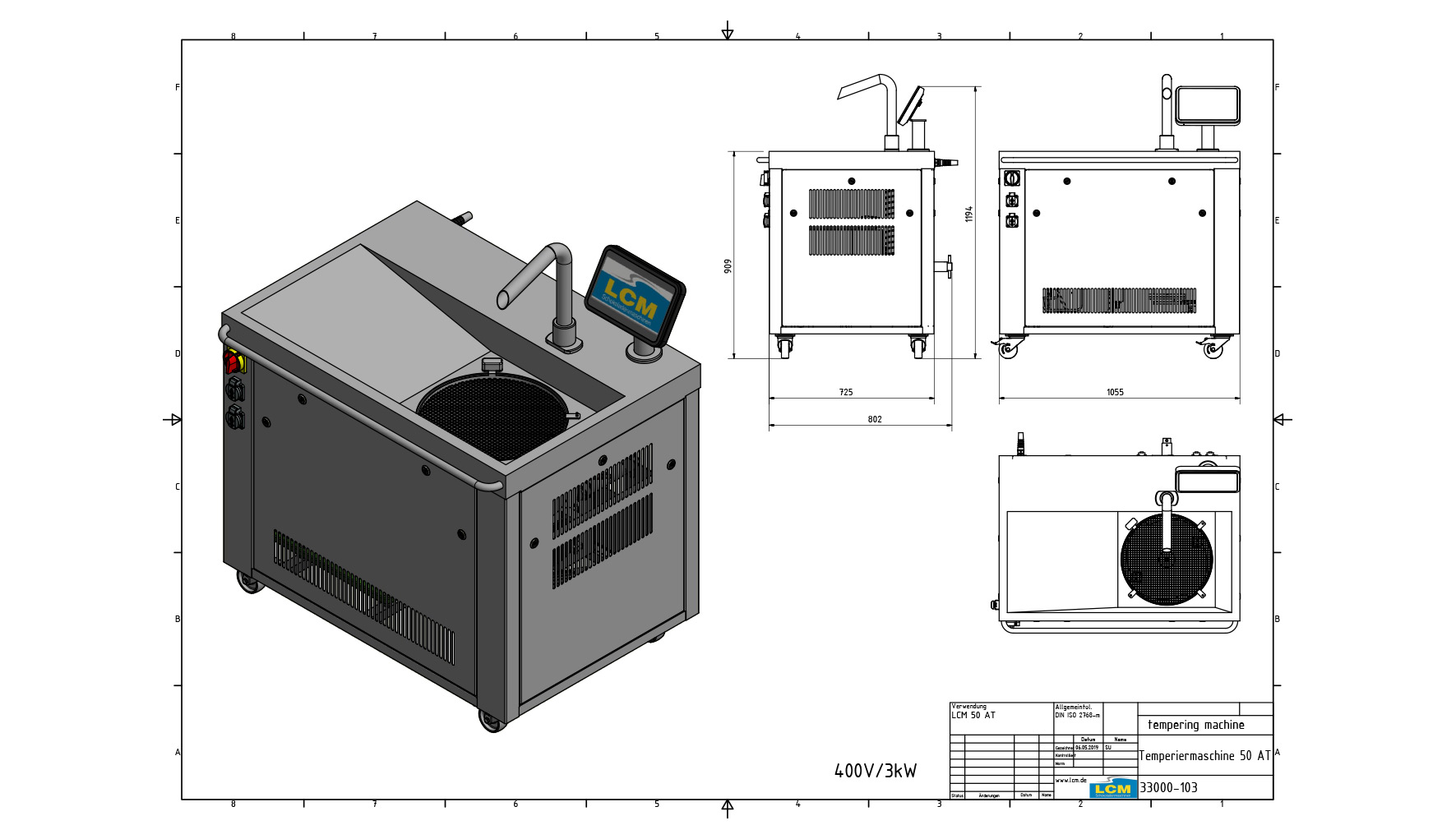

LCM 50 AT501068691/120400/2,5160

** Height heated vat / height machine
