LCM KASKADEN TEMPER

Tempering machine

The LCM cascade temperer is suitable for processing quantities up to 250 kg/hour. In conjunction with a heated pipe system from LCM, it is ideal for feeding coating and metering machines of all makes.


In addition, with the cascade temper you get 2 functions in one machine: on the one hand, the two tanks work 2-stage for tempering in cascade operation for high processing quantities, on the other hand as Twin Temper with two independently working tanks.

Product description

  • Flexible tempering machine in cascade design for a continuous tempering capacity of 250kg/hour, i.e. you can remove up to 250kg/hour of tempered chocolate coating 24/7 and refill it with liquid at the same time, without having to interrupt the product ion process
  • Convenient operation via the 10" touch panel
  • Easy chocolate change and cleaning

Features

  • Continuous temperature control capacity in cascade operation approx. 250kg/hr.
  • Continuous tempering capacity in single operation (approx.50-80kg/hour per tank)
  • Two tanks with a capacity of approx. 50 kg each
  • Independently operating machines combined in one housing
  • PLC control, with 10" glass screen for comfortable operation and easy menu navigation
  • Different chocolate temperatures and settings (recipes) are programmable
  • Various accessories ready to be plugged in and operated via the touch panel, e.g. heated protective grid or heated pipe system
  • Standby function - temperature increase in the tank and interval for the agitator to ensure perfect decrystallization during the work break
  • Smooth start-up of the agitator by using a frequency converter, thus low stress on the mechanical components and a long service life
  • Automatic, individual shutdown of the heating circuits depending on the filling quantity
  • Level measurement "minimum - maximum" via indicator light, ready to plug in, prepared for automatic charging by external dissolver with pump
  • FI residual current circuit breaker according to DIN VDE 0100-100 - safety of persons
  • Cooling system for temperature control in the lower part of the machine
  • Machine housing completely made of stainless steel, mobile on swivel castors

Technical data

 Capacity (kg)Width (cm)Depth (cm)Height (cm)**el. Connection (V/kW)Weight (kg)

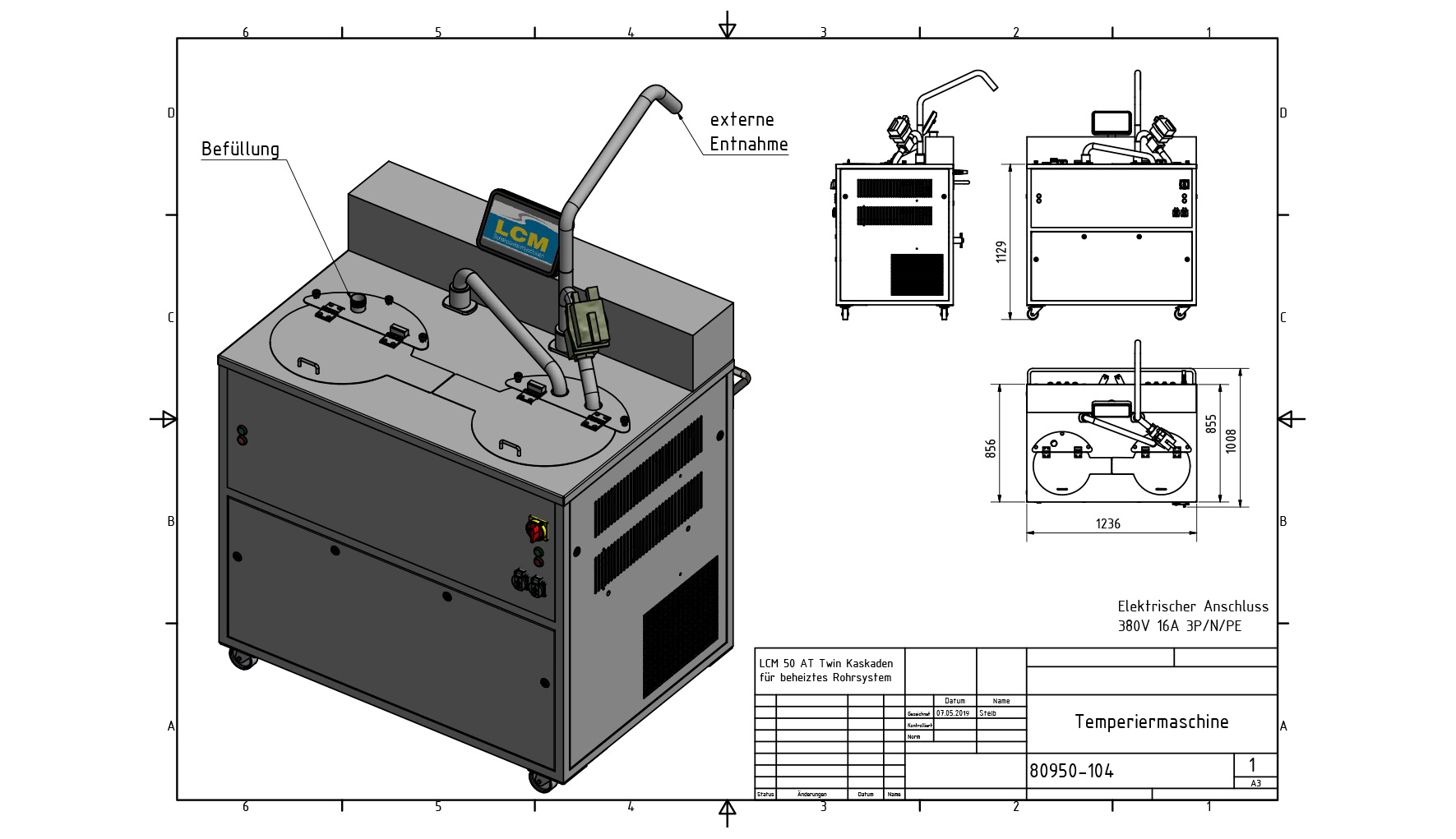

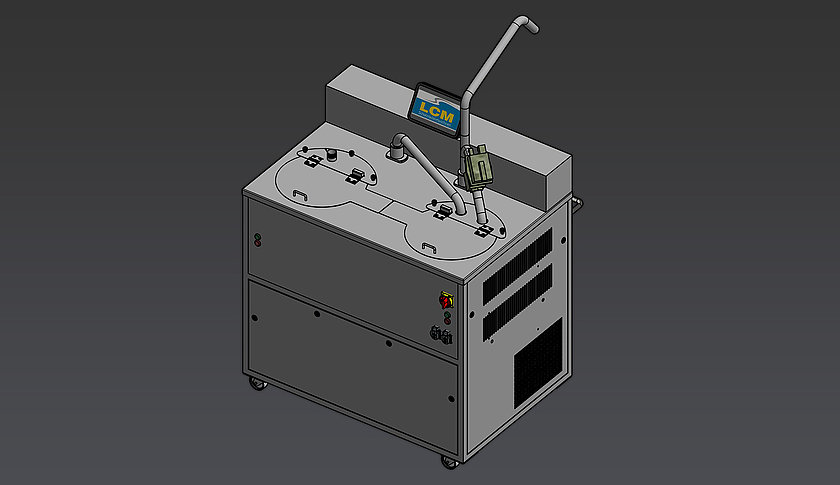

LCM 50 AT KASKADEN TWIN2 x 50125100113/124/133400/4,9320

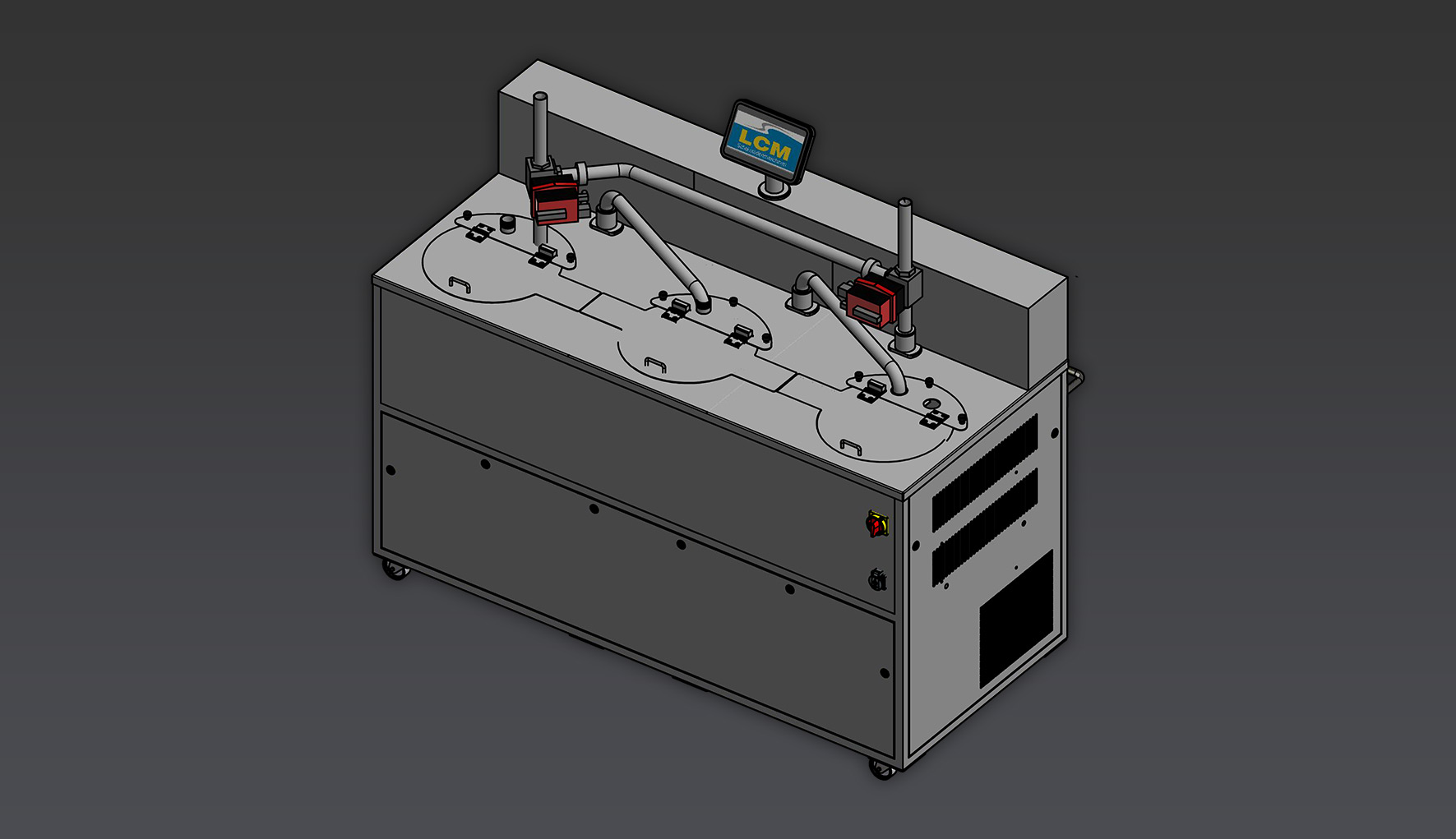

LCM 60 AT KASKADEN TRIPLE3 x 60165103106/ /127400/9,5380

** Height working tray / height working / height machine
